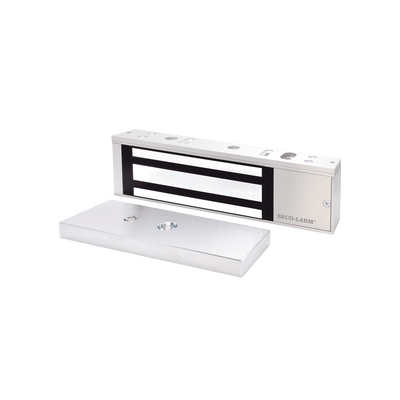

Descripción
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12/24 VDC (selectable) |
| Current Draw | 500mA@12VDC, 270mA@24VDC |
| Bond Sensor | Yes |
| Status LED | Yes |
| Operating Temperature | 32º ~ 120º F (0º ~ 49º C) |
| Dimensions – Magnet | 9-13/16″x1-11/16″x1″ (250x43x25 mm) |
| Dimensions – Armature | 7-1/4″x1-1/2″x1/2″ (185x38x12 mm) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
| Weight | 4-lb 6-oz (2kg) |
Características
- Fuerza de retención de 272 kg para alta seguridad
- Voltaje operativo 12/24 VDC ajustable
- Consumo 500mA@12VDC o 270mA@24VDC eficiente
- Sensor de unión y LED de estado incluidos
- Dimensiones del imán 250x43x25 mm precisas
